Tensilica's HiFi 3 DSP Core: Audio Post-Processing Comes to the Fore

Submitted by BDTI on Thu, 01/19/2012 - 21:03

In the digital audio world, the second half of the '90s and a notable portion of the '00s were dominated by the "codec wars." Kicked off by MP3, which emerged in mid-1994, the battle was soon joined by a host of competitors; industry-standard follow-on AAC, Microsoft-developed WMA, RealNetworks-championed RealAudio, open-source favorite Ogg Vorbis, etc. And, from a surround sound standpoint, Dolby Digital was dominant in the DVD era, with DTS ascendant on the Blu-ray successor.

Nowadays, however, the codec wars have largely diminished to sporadic skirmishes. For conventional two-channel audio, MP3 remains the status quo, thanks in no small part to the record labels' abandonment of DRM. AAC has secondary priority, courtesy of iTunes. And the Dolby-vs-DTS tug-of-war has degraded to a stalemate, although their shared optical disc business basis is flirting with obsolescence, courtesy of growing popularity of streaming video.

Does this market maturation mean that audio DSPs are in danger of irrelevance? Not according to Tensilica, which chose last week's Consumer Electronics Show to unveil the company's latest HiFi 3 audio DSP core. In focusing on consumer electronics applications such as TVs and optical disc players, as well as mobile electronics opportunities such as cellular handsets, company spokesperson Larry Przywara (senior director of multimedia marketing) was quick to comment that codecs remain a corporate priority: not only the earlier-mentioned two-channel and multi-channel music schemes, but also a diversity of voice-optimized cellular and VoIP approaches.

Przywara made a point of noting, for example, that one notable ongoing codec opportunity is due to the prevalence of consumers ripping DTS-HD Master Audio-encoded Blu-ray discs to DRM-stripped files for subsequent playback over tablets and smartphones, HDMI-tethered to TVs. However, the dominant upside implementation opportunity this time around is post-processing; surround sound virtualization and expansion (Qsound, SRS Labs, etc.), speaker calibration (Audyssey), dialog normalization, dialog clarity and boost, bass and treble boost, equalization, etc.

That's where HiFi 3 comes in. Przywara noted that the company's latest generation DSP core didn't explicitly come about due to the higher transistor counts available in latest-generation processes, suggesting instead that its development was fueled by the higher processing requirements of latest-generation systems. Nonetheless, he agreed that 28 nm and smaller lithographies made advanced cores such as HiFi 3 far more cost-effective than might have been possible in the past (Figure 1).

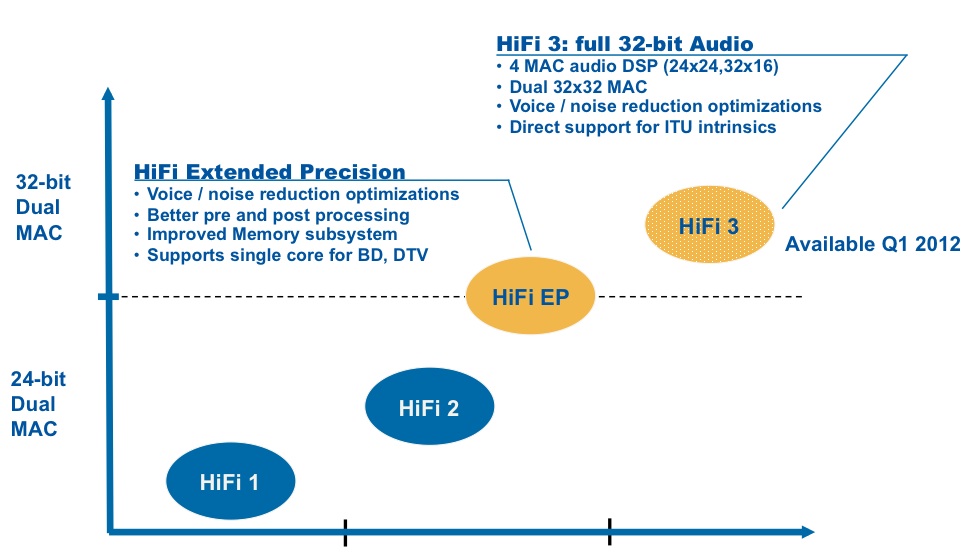

Figure 1. HiFi 3 brings Tensilica's Xtensa-based HiFi architecture fully into the 32-bit era

HiFi is a three-slot (i.e. triple-issue) VLIW architecture based on the company's Xtensa Dataplane Processor (DPU) approach and encompassing a multi-MAC scheme capable of quad 24x24 or 32x16, or dual 32x32 or 32x24 MAC operations. HiFi 3 also integrates a 64-bit load/store unit, along with a unified 16-entry, 64-bit register file. Backwards-compatible with HiFi 2 and HiFi EP software, HiFi 3 will at minimum offer a modest performance boost for legacy code; a sub-10% average improvement "out of box" with a greater-than-20% average improvement after various coding tweaks, according to Tensilica.

Feed HiFi 3 with instruction-set-optimized software, however, and the new core's advantages become notably more evident (Figure 2).

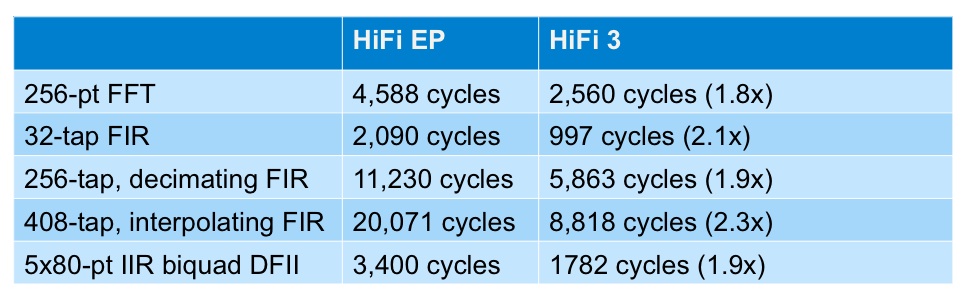

Figure 2. HiFi 3's feature set evolutions bring substantial performance improvements to common digital signal processing algorithms

And the improvements aren't restricted to synthetic code samples; according to Tensilica, they also extend to production audio algorithms, where the resultant lower processing load translates into reduced clock speed (therefore extending battery life) or into performance headroom available for other functions (Figure 3).

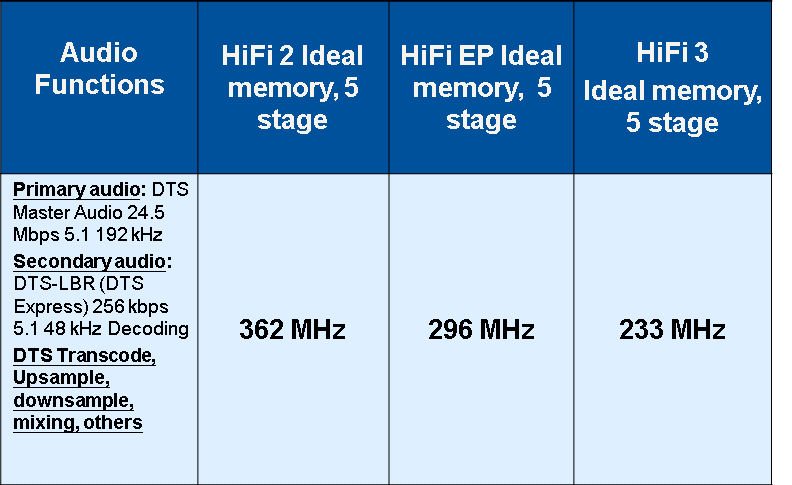

Figure 3. Popular audio codecs also benefit from Tensilica's architectural improvements, translating into expanded CPU headroom, lower clock speeds (and power consumption), or a combination of these factors

Additionally, HiFi 3 adds explicit acceleration for industry-standard voice codecs; direct support for ITU primitive operations, such as multiplies, ALU operations and shifts, along with automatic vectorization of ITU intrinsics, all leading to an anticipated 1.5x performance improvement, according to Tensilica. More generally, in addition to support for legacy HiFi 2 data types, HiFi 3's software tools deliver three key enhancements:

  • C++ style operator overloading of HiFi 3 data types
  • Auto-vectorization support for SIMD operations on standard C code, and
  • Compiler inference for non-SIMD code, using equivalent HiFi 3 operations in VLIW format where possible and beneficial

And HiFi 3's support for standard 32-bit C code simplifies the overall programming model versus the HiFi 2 and HiFi EP precursors.

HiFi 3's software tools (including both a compiler and a cycle-accurate simulator) are now available to lead customers, as is access to beta core RTL (register transfer level) code. To wit, Tensilica says that it has already licensed HiFi 3 to a tier-one smartphone OEM and a tier-one semiconductor manufacturer, though it declines to disclose the identities of these customers. The general HiFi3 release is forecasted to occur by the end of this quarter.
